Alfrex | Standard FR Bkp2

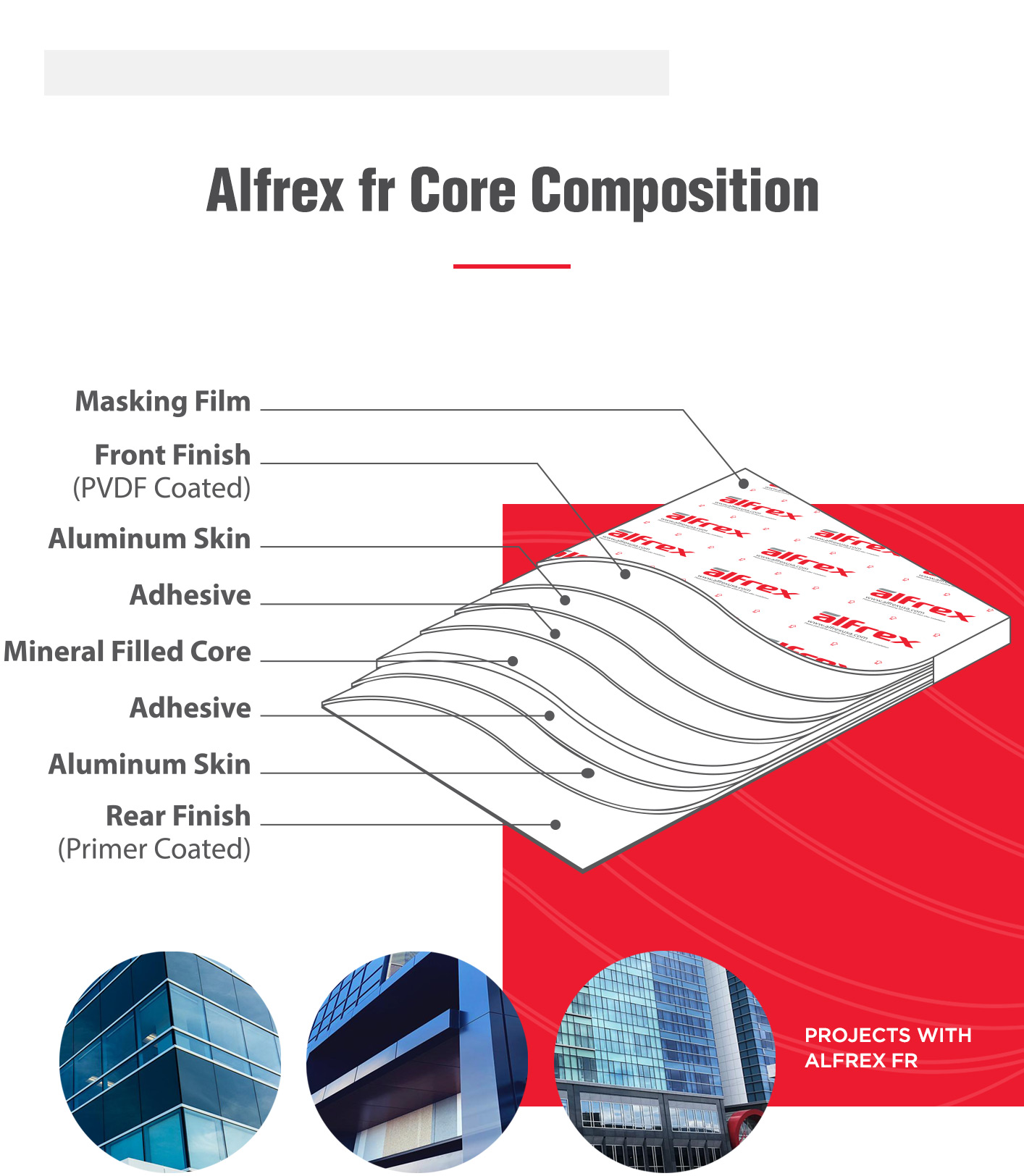

Alfrex FR is a metal composite material which consist of aluminum skins and a fire resistant core.

It is lightweight yet has high strength physical properties.
With an extensive range of colors and aluminum coating patterns, Alfrex FR can be used for any type of architectural design.

  • Exceptional Flatness
  • Light-Weight
  • Highly Durable
  • Superior Fire Resistance

Get Started!
Learn more about product information

Features

Fire-Resistance

Meets ASTM E84, ASTM E119, NFPA 285, CAN/ULC S102, CAN/ULC S134
...

Lightweight & Flat

1.51 lbs per sqft - High strength-to-weight ratio. Exceptional flatness...

Flexible and Formable

Can be cut, routed, sheared, bent, folded, roll formed
...

Wide Color Range

Solid, mica, metallic, prismatic, wood grain, stone, brushed aluminum, faux natural metals...

Fully Tested and Certified

Intertek Laboratory of Record - ICC ES AC-25...

Durable Finishes

70% PVDF Kynar coil coated finishes. Finish Performance Warranties...

Standard Size

Total Thickness .157” (4mm)
Front Finish Thickness .020” (0.5mm)
Rear Skin Thickness .020” (0.5mm)
Width 40” – 62” (1,020mm – 1,575mm)
Length 7’ – 18’ (2,000mm – 5,500mm)

Tolerance

Total Thickness .157” (4mm)
Front Finish Thickness .020” (0.5mm)
Rear Skin Thickness .020” (0.5mm)
Width 40” – 62” (1,020mm – 1,575mm)
Length 7’ – 18’ (2,000mm – 5,500mm)
Finishes Request samples
